Online Forms

ASM allows you to setup online forms that you can use to take information from members of the public through your website (if your ASM is publically accessible, or you are using sheltermanager.com).

This is very useful for handling adoption and waiting list application forms, questionnaires, taking lost or found animal information from people, complaints, behavioural assessments, etc. They can be used for any situation where you’d like to take information from web site visitors.

Forms need a name and a description. The description will be shown to the user while they are filling out the form. You can also specify a page you’d like to redirect the user to after they’ve completed the form.

If you use certain key fields (which the system will autocomplete for you), the system can create person, lost animal, found animal, animal control incident, transport or waiting list records directly from the submitted form data. You can also choose to attach form submissions to animal and people records.

If you set some person flags on your form, any person record created from the form data will automatically have those flags. In addition to that, the “checkbox” field type allows you to enter some additional person flags to set if that checkbox is checked during submission.

_images/onlineform_edit.png

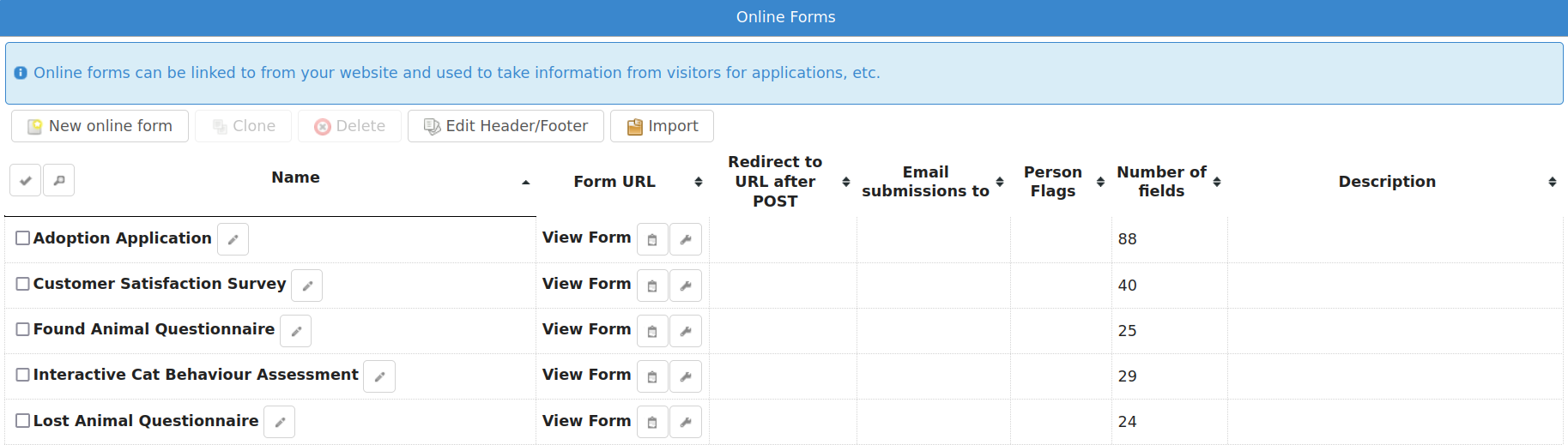

As you can see in the screenshot, each form has a “Form URL”. This is the web link you can use on your website to link people to the form. You can also click it directly there in the UI to test your form.

You may add extra parameters to the URL if you’d like to set default values for some of your form fields, by using the format fieldname=value.

The form option “Email adoption coordinator” will send a copy of the submission to the person specified as the adoption coordinator for an animal the form is about. The form must have an animalname or reserveanimalname field for this to work.

If you set one of the “Send confirmation email to form submitter” options, the system will look for a field called “emailaddress” during submission. If that field exists and is populated with an email address, a confirmation email will be sent to that address. The confirmation message field will form the first part of the body of the email. HTML can be used, but it must be a complete HTML document that contains an <html> tag.

Warning

sheltermanager.com uses a short term 2 minute cache on forms, so if you make changes to a form you’ve recently viewed, you may have to wait 2 minutes for any changes you make to appear.

If you declare a javascript function in your form’s header or footer named asm3_onlineform_submit, it will be called when form validation is successful and just before the form is submitted. You can use this if you want to grab the form values and send them somewhere else or transform the values before it is submitted to ASM:

function asm3_onlineform_submit() {
   alert("form is about to be submitted");
}

Editing Form Fields

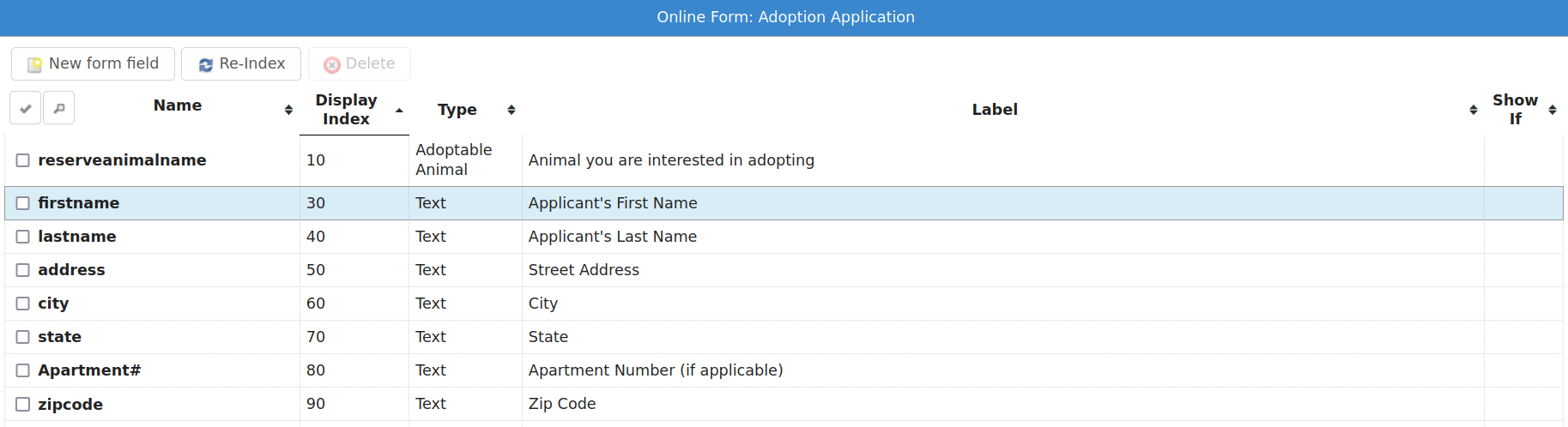

Clicking on the form’s name will allow you to edit the individual fields of information the report will take.

_images/onlineform_fields.png

The dialog will autocomplete the known fields that ASM can look for when creating records from form submissions. For details, see Appendix: Online Form import fields

To create any record, you will need at least a lastname or surname field. Lost animal records need an arealost and description, found animal records need an areafound and description, waiting list records need a description.

The “lookup”, “radio” or “multi-lookup” field types require a list of values. You should separate these with the pipe character. Eg: Option 1|Option 2|Option 3

The “signature” field type allows the person completing the form to sign electronically with a touchscreen.

A “raw markup” field type allows you to insert your own HTML sections within the form. This is useful for adding contract clauses, headings, or any sort of extra formatting.

The “GDPR contact” field type allows for a multiple lookup of GDPR communication choices to be made for resulting person records.

When forms are submitted through the website they come through to the “View Incoming Forms” screen, where the values can be inspected by clicking the name of the form submission. The screen shows a preview of the incoming data and the IP address that submitted it.

If a field called “emailaddress” is supplied as part of the form submission, the complete submission will be emailed automatically to the person who completed it for their records.

Similarly, if a field called “emailsubmissionto” is supplied, containing one or more comma separated email addresses, the submission will also be emailed to these extra addresses. This can be useful to have form values trigger hidden values to send submissions to other addresses.

If you have a field where the name prefix is “additionalX”, the system will look for an additional field called X and store the submission value in it when creating a person record. It will only work for new person records created from the form submission and not if the form updates an existing person record to prevent overwriting data.

Show If syntax

It is possible to have the system only display some of your form fields based on a condition being met. There are many situations where you may want to do this to remove unnecessary fields based on previous answers (for example, remove questions about the landlord if the person is not renting, or questions about dogs if they are surrendering a cat, etc).

Edit the form field that you want to show or hide based on a condition, and enter the condition in the “Show If” box.

The syntax for show if is:

fieldname=X

to only show if the form field with fieldname currently has the value X.

You can also use ! instead of = to only show if the field does NOT have the value and < or > to use lesser than or greater than comparisons with a fixed value. Eg:

fieldname!notthis
fieldname>0
fieldname<20

If a value is not supplied, the system will compare against an empty string, so you can test that a field is or isn’t empty:

fieldname=
fieldname!

If fieldname is a checkbox, you can test for the special keyword “on” to indicate you want the box checked (or “off” for unchecked):

mycheck=on

If you want to reference a checkbox that is part of a checkbox group, you can reference it by the name of the group and item number, starting with 0 for the first item:

checkboxgroup0=on
checkboxgroup1=off

Multiple conditions can be specified. They will be ANDed together, so all conditions have to be true in order for the field to be displayed. Separate conditions with an ampersand &

mycheck=on & fieldname=X

Note

Only check boxes, radio buttons, text and lookup fields can be used with Show If

Incoming Forms

_images/onlineform_incoming.png

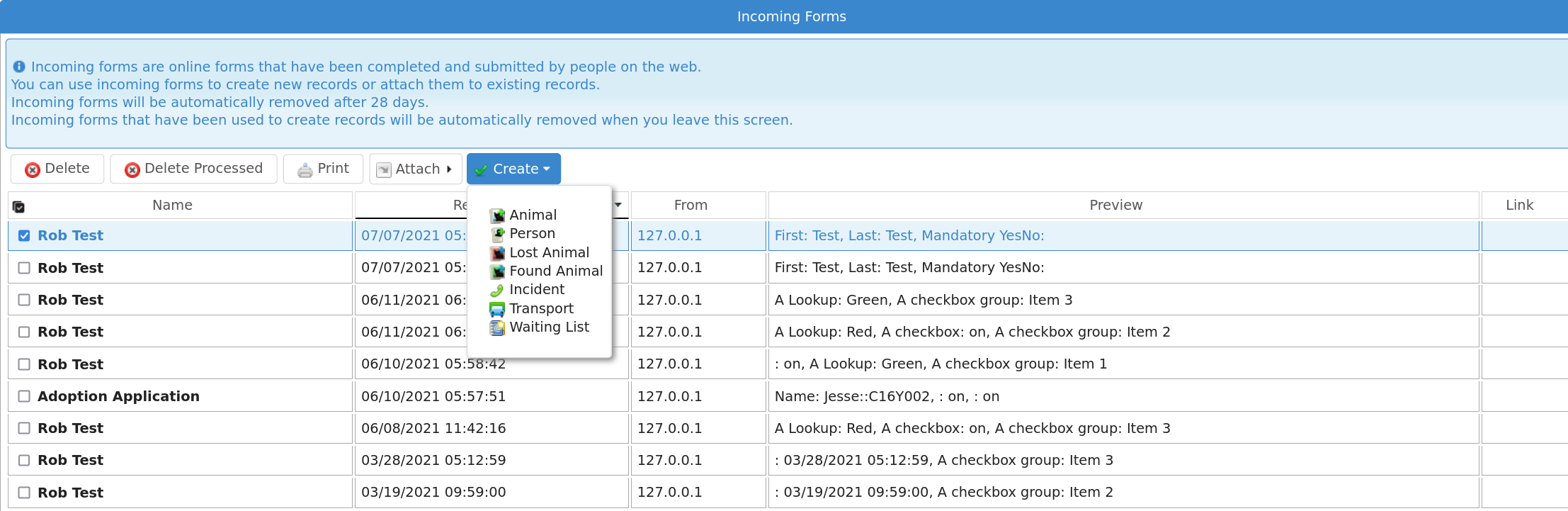

Selecting a form allows you to intelligently create or attach records from the data, or explicitly attach the form to existing records.

  • Attach Person: Prompts for a single person record and attaches a copy of the form to them as media.
  • Attach Animal: Prompts for a single animal record and attaches a copy of the form to them as media.
  • Attach Animal (via animalname): Attaches the form to a single animal record based on the animalname field in the form itself.
  • Create Animal: Searches for an animal record matching the code field on the form if present. If a match is found, the form is attached to that animal, otherwise a new animal record is created. While you can use the Species and Breed field types with the breed1/breed2/color fields, you can also use your own lookup lists containing subsets of these items for users to choose from. When creating animals, the animalname and one of dateofbirth or age are mandatory.
  • Create Person: Searches for a person record matching either the email address if present, or the firstname, lastname and address fields on the form. If a match is found, the form is attached to that person. If no match is found, a new person record is created. If a “reserveanimalname” field was found on the form as well, a reservation to the matching animal is created to the person (these can be all viewed under Move ‣ Reservation Book).
  • Create Lost Animal: Runs through the same steps as Person so needs enough information to create/find a person as well. “description” and “arealost” fields are the minimum required to create the lost animal record.
  • Create Found Animal: Runs through the same steps as Person so needs enough information to create/find a person as well. “description” and “areafound” fields are the minimum required to create the found animal record.
  • Create Incident: Runs through the same steps as Person so needs enough information to create/find a person as well. That person becomes the “caller”. “callnotes” and “dispatchaddress” fields are the minimum required to create the incident record.
  • Create Transport: Runs through the same steps as Animal, so needs an “animalname” field to figure out who to attach the transport to.
  • Create Waiting List: Runs through the same steps as Person so needs enough information to create/find a person as well. A “description” field is the minimum required to create the waiting list record.

When you create a new record or attach the form, the whole form will be included in the media tab of any created records (animal, incident, person AND lost/found animal or waiting list). The screen will put a link in the Link column to give you a clickable link to the newly created record as well so you can view it. The system will also show a little warning icon at the side of this link if that record already existed and was updated instead of newly created.

Incoming forms that have been attached to a record will be automatically deleted when you leave the screen. The system will also remove incoming forms older than 4 weeks by default. Both of these options are configurable under the Online Forms tab of Settings ‣ Options

Application Forms

ASM calls an application a “reservation”. If your form has a field named “reserveanimalname” of type “Adoptable Animal”, then using “Create Person” on an incoming form submission will create a reservation for the new person to that animal.

The reservation will link the new person and the animal record. That link can be viewed under the movement tab of the person or animal, and you can view all current applications under Move ‣ Reservation Book.

Reservations can have a status (eg: New, Pending home visit, Denied, etc).

You can configure your own statuses under Settings ‣ Lookup Data ‣ Reservation Statuses

Since the system default is to make animals who have a reservation not available for adoption, you may want to change this by setting Publishing ‣ Set Publishing Options ‣ Animal Selection ‣ Include Reserved to YES.

Importing

ASM also allows importing of online forms from files.

Form files can be in a structured JSON format that ASM recognises, eg:

{
    "name": "Adoption Application",
    "description": "",
    "header": "",
    "footer": ""
    "fields": [
        { "index": 1, "lookups": "", "mandatory": "true", "name": "reserveanimalname",
          "tooltip": "", "label": "Animal you are interested in", "type": "ADOPTABLEANIMAL" },
        { "index": 2, "lookups": "", "mandatory": true, "name": "firstname",
          "tooltip": "", "label": "Applicant's First Name", "type": "TEXT" },
        { "index": 3, "lookups": "", "mandatory": true, "name": "lastname",
          "tooltip": "", "label": "Applicant's Last Name", "type": "TEXT" }
    ]
}

Files can also be HTML, where the import mechanism will extract all of the input, select and textarea elements. It will use the name attribute to set the field name and label. The HTML page title will be used as the form title.

HTML import is only basic, but can be used to grab the existing fields of a form you already have ready for editing, eg:

<!DOCTYPE html>
<html>
<head>
<title>My Adoption Form</title>
</head>
<body>
<form action="handler" method="post">
    <p><input type="text" name="firstname"> First Name</p>
    <p><input type="text" name="lastname"> Last Name</p>
</form>
</body>
</html>
